2023 New Products
瀏覽人數:439

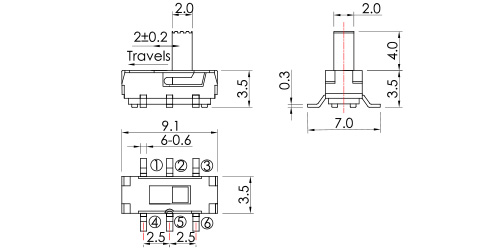

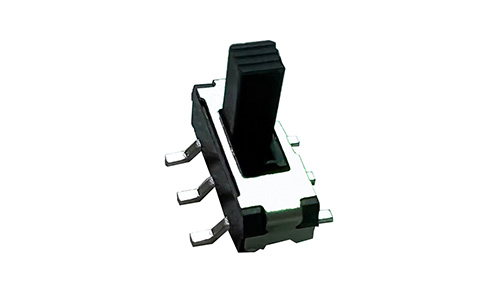

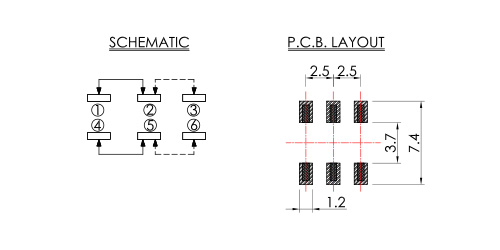

IS-2235SA2-B Series Slide Switch 系列滑動開關
Specification:
產品規格:
- Rating額定電流: 100mA 12V DC.
- Function功能: ON-ON.
- Contact resistance接觸電阻: 50mΩ Max.
- Insulation resistance絕緣電阻: 100MΩ Min. at 100V DC.
- Withstand voltage耐電壓: 250V AC for 1 minute.
- Operating force操作力: 200±50g .
- Operating life壽命次數: 10,000 Cycles.
